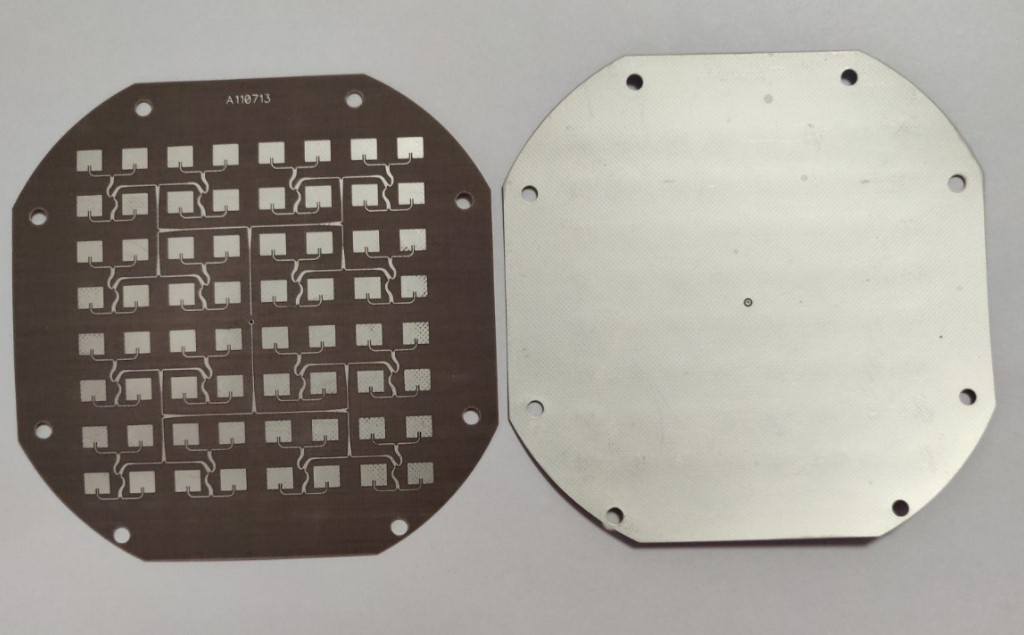

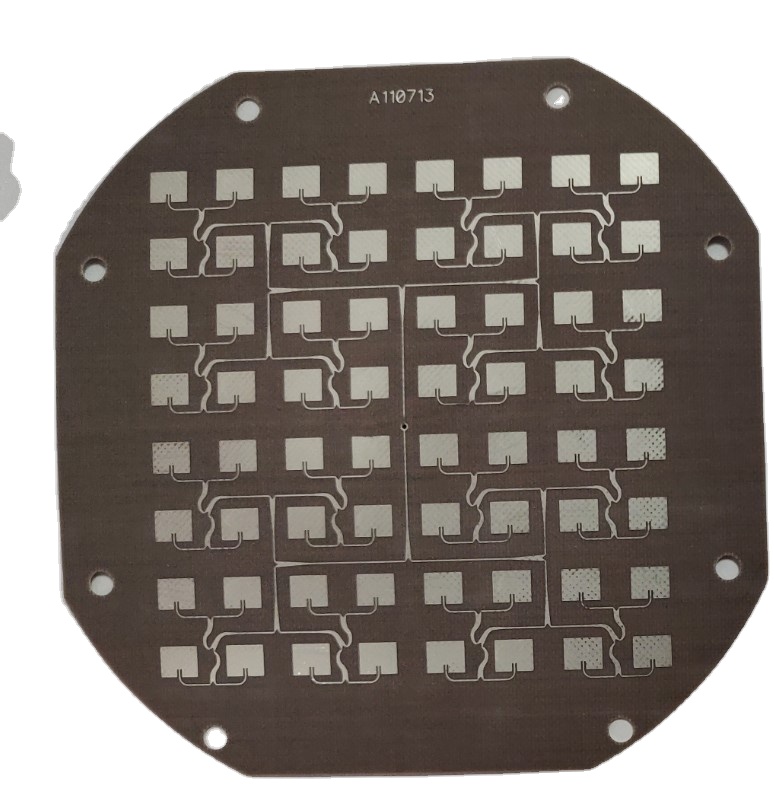

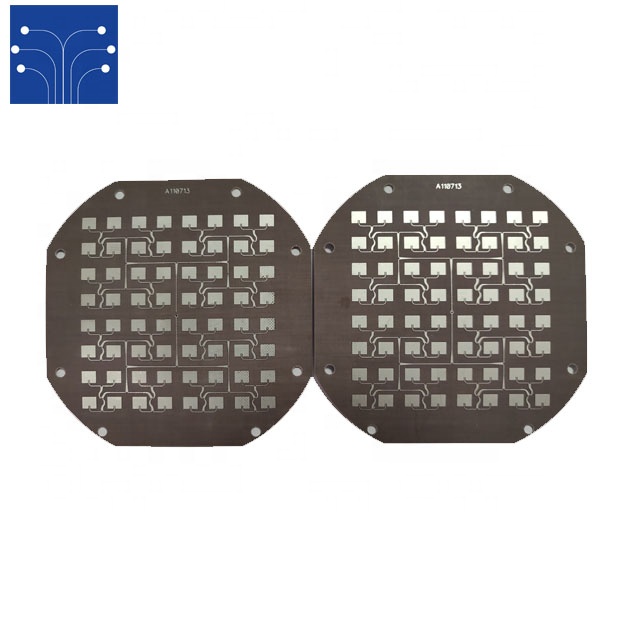

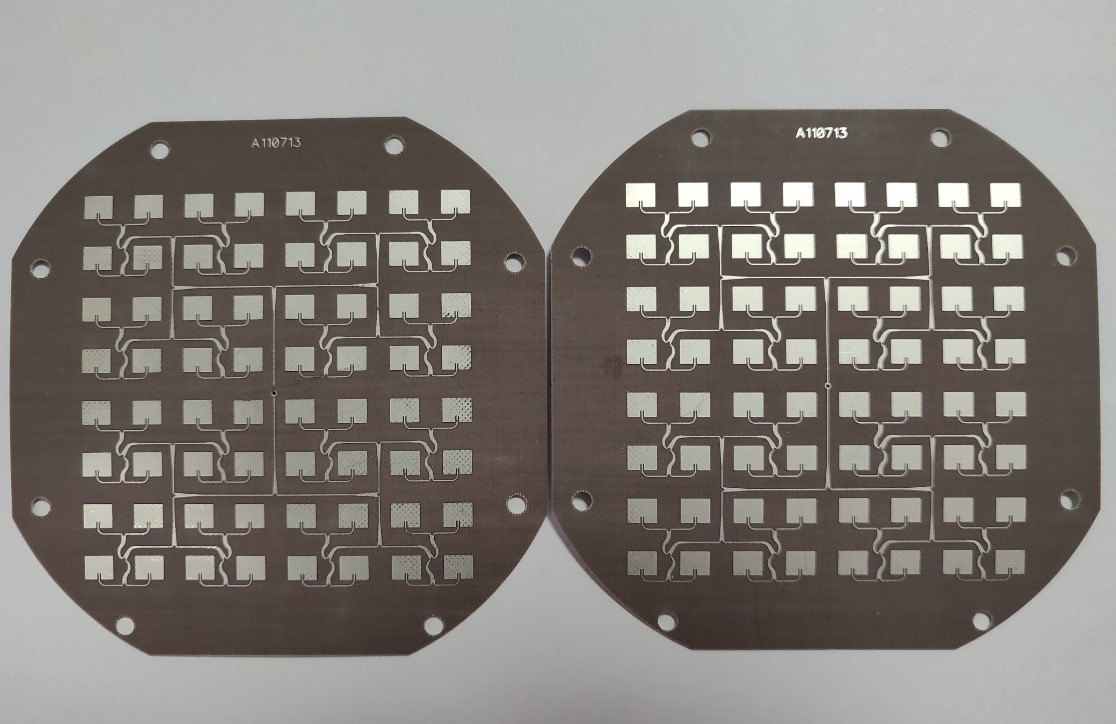

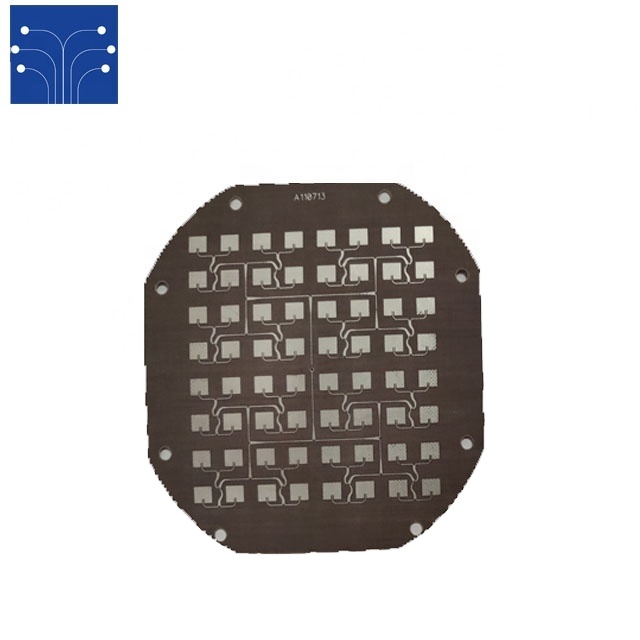

Aluminum substrate PCB circuit board aluminum TOP PCB high-frequency PCB Taconic TLY-5 thickness 0.254 millimeters

1 / 5

Aluminum substrate PCB circuit board aluminum TOP PCB high-frequency PCB Taconic TLY-5 thickness 0.254 millimeters

Send Inquiry

Product Description

About Us

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.

Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.

Key Model Specification
Model	Aluminum substrate
Solder mask coverage	Resin plug hole
Outer copper thickness	0.5oz
Forming method	Mold Forming

Main Products

Production Line and Equipment

Manufacturing Technique

Rigid PCB Manufacturing Capability
Category	Volume Production	Sample Processing
Layer count	1-68L	64 Layer
Max thickness	10mm (394mil)	14mm (551mil)
Min line width/space (Inner)	2.2mil / 2.2mil	2.0mil / 2.0mil
Min line width/space (Outer)	2.5 / 2.5mil	2.2 / 2.2mil
Alignment with the core board	±25um	±20um
Inner layer alignment	±5mil	±4mil
Max copper	6oz	30oz
Mechanical drilling hole size	≥0.15mm (6mil)	≥0.1mm (4mil)
Laser drilling hole size	0.1mm (4mil)	0.050mm (2mil)
Max Unit Size	850mm X 570mm	1000mm X 600mm
Max Panel Size	1250mm X 570mm	1320mm X 600mm
Aspect Ratio (Unit)	20:1	28:1
Aspect Ratio (Panel)	25:1	35:1
Lead-free/Halogen-free Materials	EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
High-speed PCB Material	Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
High-frequency PCB Material	Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
Other Materials	Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finished	HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating
Special Technology	Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Mixed RF PCB, Busbar PCB

Quality Assurance

Consciousness of making each product a high-quality product by strictly following the quality management system.
Based on ISO 9001, ISO 14001, IATF16949, RoHS, Reach, UL, CQC quality management systems; simultaneously running IATF 16949.
Involving all staff in entire process control.
Commitment and confidence in ensuring 100% quality.
Shipping acceptance criteria: Customer requirements, IPC standards.
Assisting customers in developing quality standards and cooperating with customer experiments to improve product performance.

Laboratory Capabilities

Packing & Shipping

Shipping Standards

We ship PCB orders with the following flexible options:

Air Shipping: UPS, DHL, TNT, CTS, and FEDEX
Railway Shipping
Seaborne Transport
Customer Designated Shipping Methods

Layer Count	Sample Shortest Lead Time	Sample Standard Lead Time	Mass Production Lead Time
2 Layer	24 hours	3 days	6-7 days
4 Layer	36 hours	5 days	8-10 days
6 Layer	48 hours	5 days	8-12 days
8 Layer	72 hours	5 days	9-12 days
10 Layer	4 days	7 days	14 days
12 Layer	4 days	7 days	16 days
14 Layer	5 days	8 days	16 days
16 Layer	5 days	9 days	18 days
18 Layer	7 days	10 days	18 days
20 Layer and above	To be negotiated	To be negotiated	To be negotiated

High Efficiency Team

Professional Engineering Team

24h technical support
24h Gerber files handling
Complete EQ within 4-8 hours
Support for 400 new project engineering reviews

Accepted CAD/CAM Formats

We process native and exported formats:

RS-274-X & RS-274-D
CAD & DXP
Protel 99 SE
PADS & GC-CAM

Professional Manufacturing Team

All processes running 24 hours
Monthly production of over 10K high-mix part numbers
More than 100 QTA orders processed daily
One-step services from prototype to mass production

Efficient Order Operation Center

24 hours quick response
4 hours quick response for quotation requests

Certifications

Frequently Asked Questions (FAQ)

What types of PCB capabilities do you offer?

We specialize in manufacturing rigid multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, and rigid-flex boards.

Which standard quality management systems do you run?

We run and are certified under ISO 9001:2015, ISO 14001:2015, IATF 16949:2016, UL, CQC, RoHS, and REACH.

What CAD/CAM file formats are accepted by your engineering team?

We accept major industry formats including RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM files.

How fast can you process quotations and prototype samples?

We provide quotations within 4 hours and standard 2-layer PCB sample runs in as fast as 24 hours. Multilayer boards range from 36 hours to 5 days depending on the layer complexity.

What shipping methods do you support?

We offer air express deliveries via UPS, DHL, TNT, CTS, and FEDEX. In addition, railway shipping, seaborne transport, and customer-designated logistics methods are fully supported.

Do you support low-volume prototypes as well as mass production?

Yes, we offer one-step services seamlessly transitioning your orders from rapid prototyping (QTA orders) to medium and high-volume mass production.
