Original Factory High Sensitivity Electronic Circuit Board Pcb Assembly For Gold Metal Detector

1 / 5

Original Factory High Sensitivity Electronic Circuit Board Pcb Assembly For Gold Metal Detector

Send Inquiry

Product Description

About Us

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.

Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.

Main Products

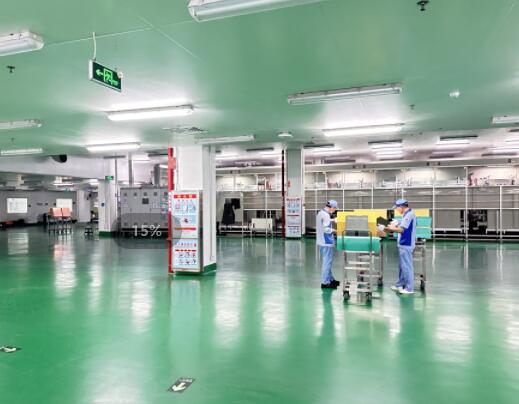

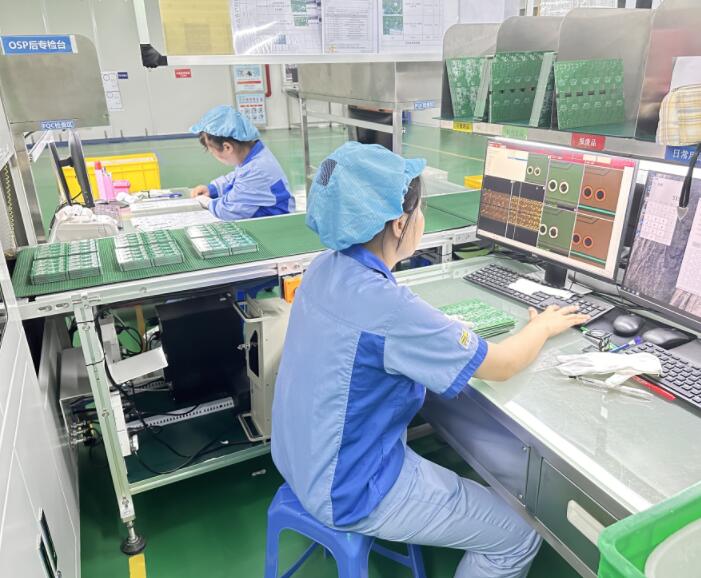

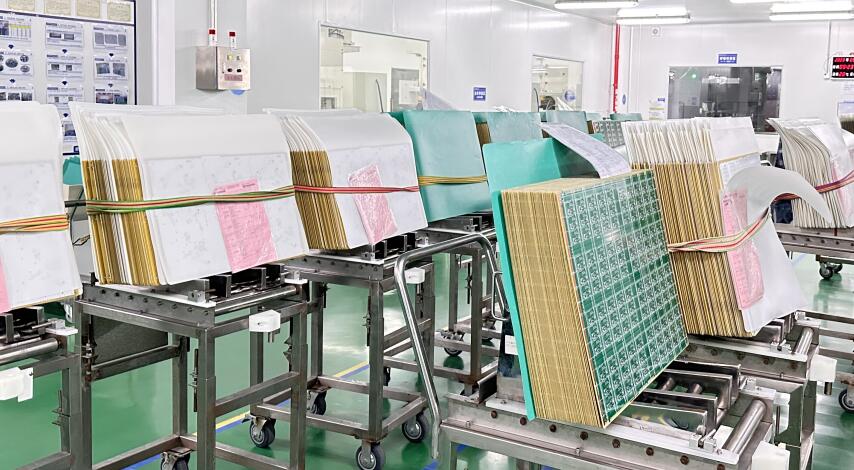

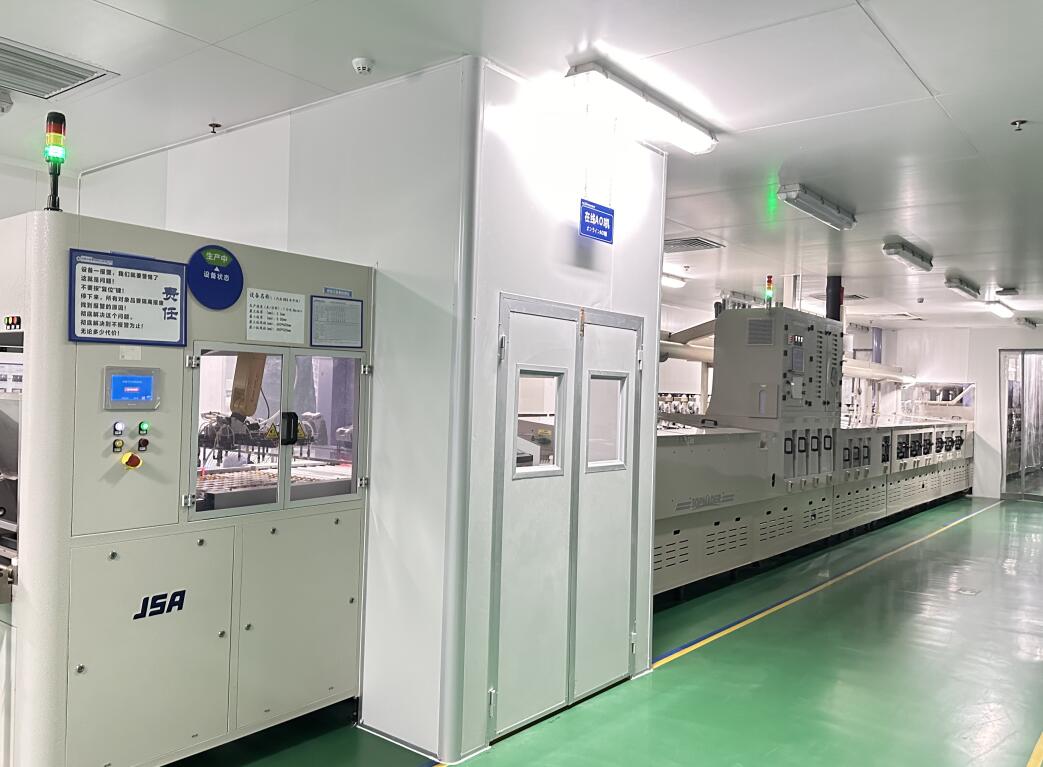

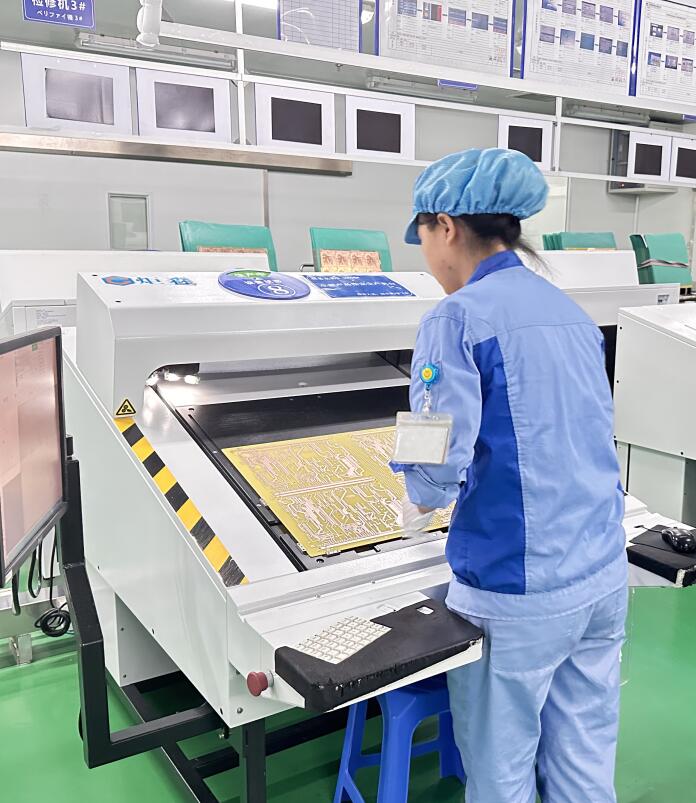

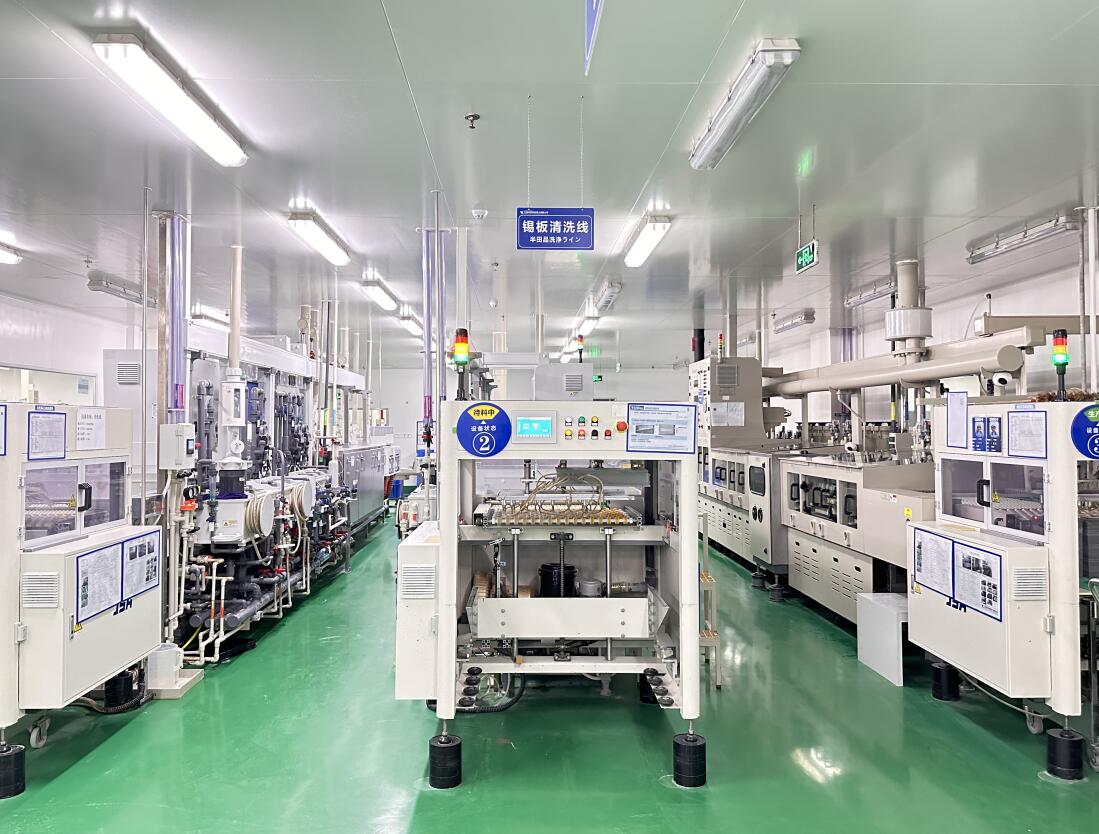

Production Line & Equipment

Manufacturing Technique & Capability

Rigid PCB Manufacturing Capability		Volume Production	Sample Processing
Layer Count		1-68L	64 Layer
Max Thickness		10mm (394mil)	14mm (551mil)
Min Line Width/Space	Inner Layer	2.2mil / 2.2mil	2.0mil / 2.0mil
Min Line Width/Space	Outer Layer	2.5mil / 2.5mil	2.2mil / 2.2mil
Alignment Capability	Alignment with Core Board	±25um	±20um
Alignment Capability	Inner Layer Alignment	±5mil	±4mil
Max Copper Weight		6 oz	30 oz
Holes Size	Mechanical Drilling	≥0.15mm (6mil)	≥0.1mm (4mil)
Holes Size	Laser Drilling	0.1mm (4mil)	0.050mm (2mil)
Max Size	Unit Size	850mm x 570mm	1000mm x 600mm
Max Size	Panel Size	1250mm x 570mm	1320mm x 600mm
Aspect Ratio	Unit Size	20:1	28:1
Aspect Ratio	Panel Size	25:1	35:1
Material Substrates	Lead-Free / Halogen-Free	EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
	High-Speed PCB Material	Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
	High-Frequency PCB Material	Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
	Others	Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finish		HAL, HAL-LF, ENIG, Immersion Tin, OSP, Immersion Silver, Gold Finger, Hard Gold / Soft Gold Plating
Special Technology		Blind & Buried Holes, Via in Pad, Semi-Plating Holes, Counterbore, Step Mounting Holes, Mixed RF PCB, Busbar PCB

Quality Assurance (QA) Standards:

Consciousness of manufacturing each product to the highest standards by strictly following our quality management systems.
Operated under ISO 9001, ISO 14001, IATF 16949, RoHS, REACH, UL, and CQC standards.
Entire process control involving all staff.
Strict objective of maintaining 100% quality.
Shipping acceptance criteria follow customized customer requirements and IPC standards.
Assisting customers in developing quality specifications and cooperating with experiments to enhance product performance.

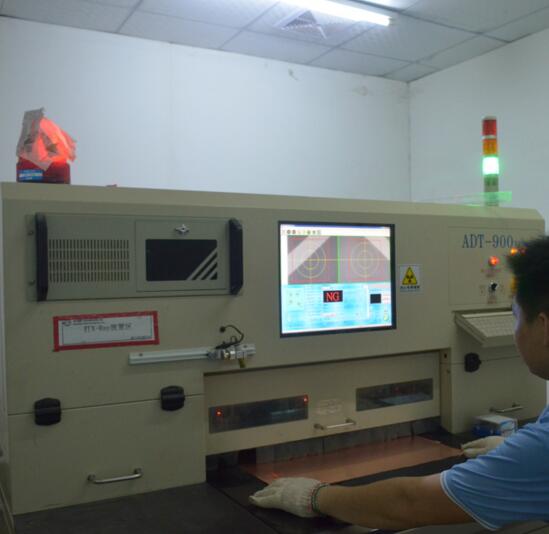

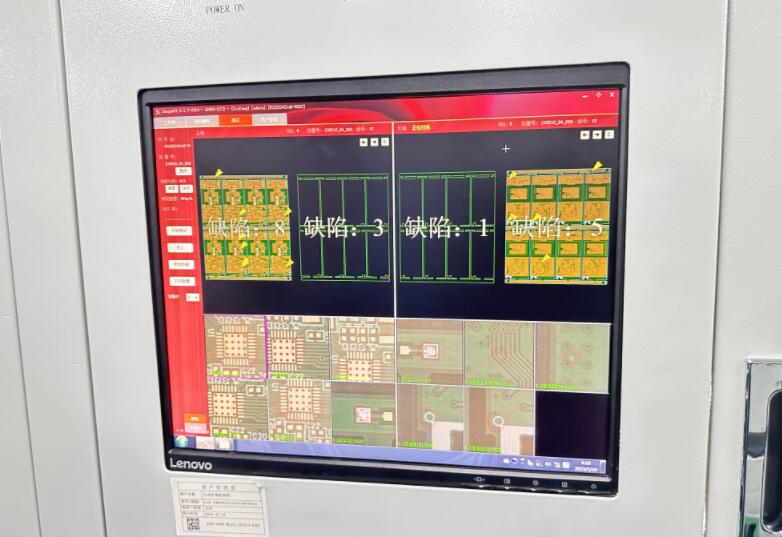

Laboratory Capabilities

Packing & Shipping

Shipping Standards

We ship PCB orders globally with the following options to guarantee speed and reliability:

Air Shipping: UPS, DHL, TNT, CTS, and FedEx
Railway Shipping
Seaborne Transport
Customer Designated Shipping Methods

Layer Count	Sample Shortest Lead Time	Sample Standard Lead Time	Mass Production Lead Time
2 Layer	24 Hours	3 Days	6-7 Days
4 Layer	36 Hours	5 Days	8-10 Days
6 Layer	48 Hours	5 Days	8-12 Days
8 Layer	72 Hours	5 Days	9-12 Days
10 Layer	4 Days	7 Days	14 Days
12 Layer	4 Days	7 Days	16 Days
14 Layer	5 Days	8 Days	16 Days
16 Layer	5 Days	9 Days	18 Days
18 Layer	7 Days	10 Days	18 Days
20 Layer & Above	To be negotiated	To be negotiated	To be negotiated

High Efficiency Team

Professional Engineering Team

24h technical support
24h Gerber files handling
Complete EQ reviews within 4-8 hours
Support for up to 400 new project engineering reviews

Accepted File Formats

RS-274-X & RS-274-D
CAD
DXP
Protel 99 SE
PADS
GC-CAM

Professional Manufacturing Team

All processes running 24 hours
Monthly production of more than 10K high-mix part numbers
More than 100 QTA orders processed every day
One-step service from prototype to mass production

Efficient Order Center

24 hours quick response for general inquiries
4 hours quick response for quotation requests

Certifications

Frequently Asked Questions (FAQ)

Q: What types of PCBs can you manufacture?

We manufacture a wide variety of high-density multilayer boards and specialty boards. Our capabilities include multilayer boards (up to 68 layers), impedance control boards, high-frequency/high-speed boards, high TG thick copper boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, and rigid-flex boards.

Q: What is the fastest lead time for prototyping?

We offer quick-turn-around (QTA) prototype services. 2-layer PCBs can be completed in as short as 24 hours, 4-layer boards in 36 hours, 6-layer boards in 48 hours, and 8-layer boards in 72 hours.

Q: What PCB material brands and types do you support?

We support a comprehensive list of high-quality materials: Lead-free/Halogen-free (EM827, 370HR, S1000-2, IT180A, etc.), High-Speed (Megtron 6, Megtron 4, Megtron 7, TU872SLK, etc.), High-Frequency (Rogers Ro3003, Ro4350B, Ro4835, Taconic, Genclad, etc.), and specialty materials like Polyimide, LCP, and BT.

Q: Which CAD and Gerber file formats do you accept?

Our engineering team accepts RS-274-X & RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM file formats for engineering reviews.

Q: What certifications do you hold for quality control?

We strictly operate under globally recognized quality standards and hold certifications including UL, ISO 9001:2015, ISO 14001:2015, CQC, IATF 16949:2016, and the National Military Standard.

Q: What are your shipping methods and standards?

We ship worldwide via multiple channels: express air transport (UPS, DHL, TNT, CTS, and FedEx), railway shipping, seaborne freight, or any shipping method designated by our customers.
